1.1   Upgrading from Eyegrade 0.2.x and 0.3.x to Eyegrade 0.4

In order to upgrade from eyegrade 0.2.x or 0.3.x to eyegrade 0.4, follow the instructions at Updating Eyegrade.

The main changes are described in the blog posts Eyegrade 0.3 released and Eyegrade 0.4 released

1.2   Installation on GNU/Linux

If your Linux distribution is not very old, it should provide most of the needed software packages. Specific instructions for Debian GNU/Linux and Ubuntu are provided below.

sudo apt-get install python python-dev python-qt4 python-opencv python-numpy libtre5 libtre-dev git

wget http://laurikari.net/tre/tre-0.8.0.tar.gz
tar xzvf tre-0.8.0.tar.gz
cd tre-0.8.0/python/
python setup.py build
sudo python setup.py install

cd $DIR
git clone -b master git://github.com/jfisteus/eyegrade.git

export PYTHONPATH=$DIR/eyegrade
python -m eyegrade.eyegrade

1.3   Installation on Microsoft Windows

You have to follow these steps, explained in the following sections, in order to install Eyegrade in Windows:

1.- Install Python 2.6 (including Tre).

2.- Install PyQt.

3.- Install OpenCV 2.1.

4.- Install Eyegrade itself.

Python

import tre

import cv

git clone -b master git://github.com/jfisteus/eyegrade.git

set PYTHONPATH=C:\eyegrade
C:\Python26\python -m eyegrade.eyegrade

1.4   Installation on Mac OS X

Sorry, Eyegrade is not currently supported on that platform. Volunteers to support the platform are welcome.

1.5   Updating Eyegrade

From time to time, a new release of Eyegrade may appear. If you installed Eyegrade using Git, updating is simple. Open a command prompt window, enter the Eyegrade installation directory and type:

git pull

This should work on any platform (Linux, Windows, etc.)

If you didn't use Git to install Eyegrade, download the new version, uncompress it and replace your eyegrade directory by the one you have uncompressed.

2.1   Launching Eyegrade

This section explains how to run Eyegrade. If it is the first time you use Eyegrade, you can try it with the sample file exam-A.pdf located inside the directory doc/sample-files of your installation of Eyegrade. Print it. You'll find also in that directory the file exam.eye that contains the metadata for this exam. You'll need to load this file later from Eyegrade.

Eyegrade can be launched from command line:

python -m eyegrade.eyegrade

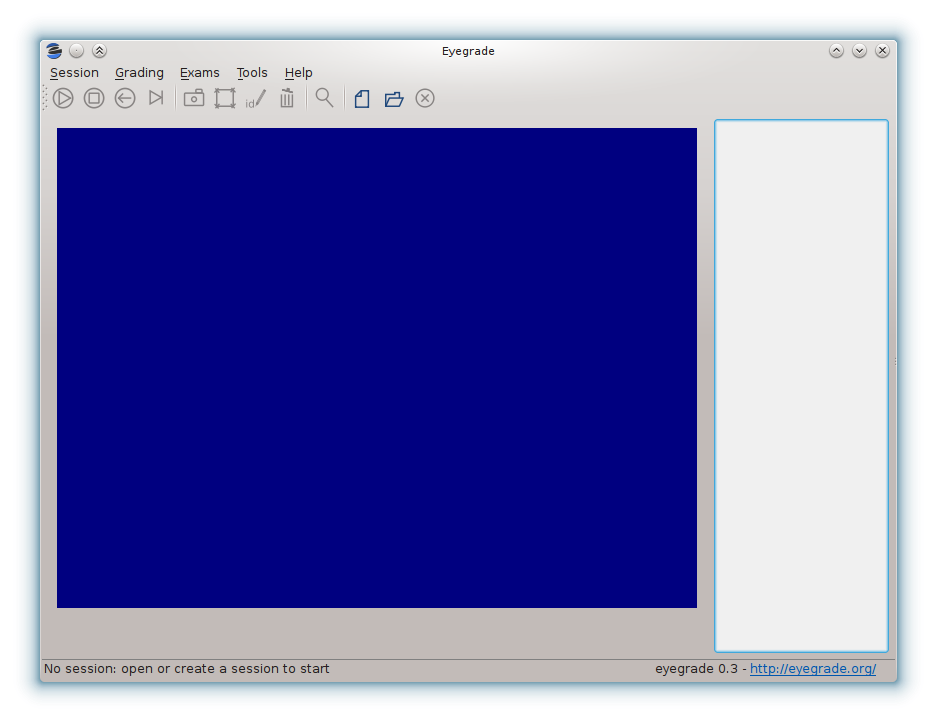

This command opens the user interface of Eyegrade:

Before beginning to grade exams, especially the first time you run Eyegrade, you can check that Eyegrade can access your webcam. In the Tools menu select the Select camera entry:

The next step is creating a grading session. Select New session in the menu Session. A multi-step dialog will ask for some data Eyegrade needs for creating the session:

• Directory and exam configuration: you need to enter here the following information:
  • Directory: select or create a directory for this session. The directory must be empty.
  • Exam configuration file: select the .eye file associated to this exam. If you printed the sample exam distributed with Eyegrade, use the exam.eye file from the same directory.
• Student id files: select zero, one or more files that contain the list of students in the class. The files should be plain text and contain a line per student. Each line must have a first field with the student id and, optionally, a second field with the student name. It may have more fields, which Eyegrade will ignore. Fields must be separated by one tabulator character.
• Scores for correct and incorrect answers: this step is optional. If you provide the scores awarded to correct answers (and optionally deducted from incorrect answers), Eyegrade will show the marks of each exam.

After you finish with this dialog, Eyegrade opens the session. It shows the image from the webcam and starts scanning for the exam. Point the camera to the exam until the image is locked. At this point, Eyegrade should show the answers it has detected. Read the following sections for further instructions.

2.2   The session directory

A grading session in Eyegrade represents the grading of a specific exam for a group of students. For example, you would grade the exams for the final exam of all your students in the subject Computer Networks in just one session. Other exams, such as the re-sit exam of the same subject, should go in separate sessions.

Grading sessions are associated to a directory in your computer. You select or create this directory when you create a new session. Eyegrade stores there all the data belonging to the grading session (configuration file, student lists, grades, images of the already graded exams, etc.)

You can open again later an existing session with the Open session option of the Session menu. In the file selection dialog that appears, select the session.eyedb file inside the directory of the session you want to open. When you open the session, you can continue grading new exams that belong to that session.

2.3   Application modes

At a given instant, the application is in one of these modes:

• No session mode: no session is open. You can open an existing session or create a new session.
• Session home mode: a session is open. This is the entry point for starting grading and reviewing already graded exams.
• Grading mode: the application continually scans the input from the webcam, looking for a correct detection of an exam.
• Review mode: the application shows a still capture of an exam with the result of the grading, so that the user can review it and fix answers or the student id, if necessary.
• Manual detection mode: in the rare cases in which the system is not able to detect the geometry of the exam in the grading mode, you can enter this mode and mark the corners of the answer tables. Eyegrade will be able to detect the tables once you tell it where the corners are.

The application starts with no open session. Once you open or create a session, it changes to the session home mode. From it, you can start or continue grading (enter the grading mode with the Start grading command) or review already graded exams (enter the review mode by clicking on an exam at the right side of the main window).

When you are in the grading mode, the program is continually analyzing the image of the webcam. When it detects an answer sheet that it can read, it locks the capture and enters the review mode. Once you confirm that capture (command Continue to the next exam), Eyegrade automatically goes back to the search mode in order to scan the next exam.

You can enter the manual detection mode by issuing the appropriate command while in the other modes.

From the grading mode you can go back to the session home mode with the Stop grading command. From any of the other modes, you can go back to the no session mode with the Close session command in the Session menu.

2.4   The grading mode

In the grading mode, you have to get the camera to point to the answer table of the exam, including, if present, the id box above it and the small squares at the bottom.

Eyegrade will continually scan the input of the webcam until the whole exam is correctly detected. At that moment, Eyegrade will switch to the review mode.

Sometimes, Eyegrade is able to detect the answer table but not the ID table at the top of it. You can notice that because the detected answers are temporary shown on top of the image. At this point, you may try further until the ID box is also detected, or just use the Capture the current image command of the Grading menu, which will force the system to switch to the review mode, using the most recent capture in which the answer table was detected. You will be able to manually enter the missing student id in that mode.

In rare occasions, Eyegrade could fail event to detect the answer table. The Manual detection command of the Grading menu allows you to help the system detect it.

These are the commands available in the grading mode, all of them at the Grading menu:

• Capture the current image (shortcut 's'): forces the system to enter the review mode with the the most recent capture in which Eyegrade was able to detect the answer table. If there is no such capture, the system just uses the current capture.
• Manual detection of answer tables (shortcut 'm'): the system enters the manual detection mode, in which you can help the system detect the answer table by marking the corners of the answer tables. After that, the system will detect the answers of the student and automatically enter the review mode. See The manual detection mode.

2.5   The review mode

In the review mode you can review and, if necessary, fix the information detected by Eyegrade in the current exam. You can do it on both the answers given by the student to each question and the student id. You enter the review mode in one of the following three different situations:

• With the answers of the student and her id detected. This is the usual case. Eyegrade was able to detect the whole exam, and you can review the information extracted from it.
• With the answers of the student, but without her id. This is the case when you use the Capture the current image command in the grading mode because Eyegrade detected the answer table in at least one capture, but not the student id box. In this case, you can review the answers given by the student and manually enter her id.
• With neither the answers of the student nor her id. This is the case when you use the Capture the current image command in the grading mode because Eyegrade was not able to detect anything from the exam. In this situation, you can switch to the manual detection mode to help the system to detect the answer tables, and manually enter the student id.

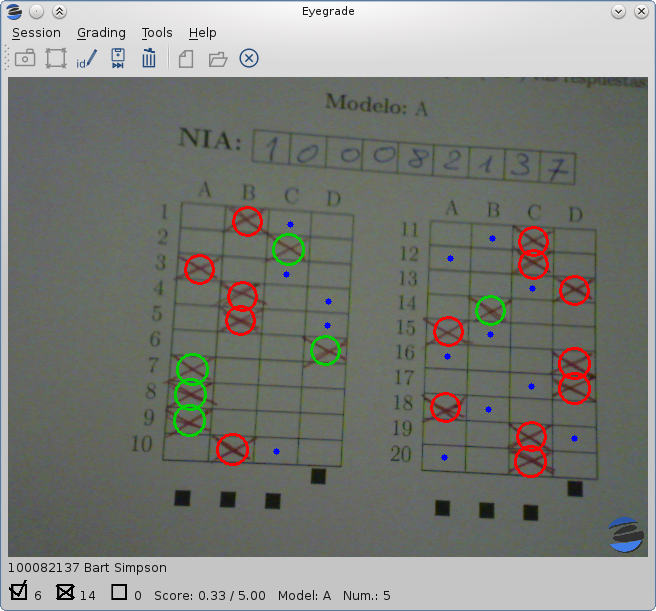

The user interface shows, in this mode, a capture of the exam augmented with the detected information, as shown in the following image:

As you can see, the system shows:

• The answers of the student, with a green circle for correct answers and a red circle for the incorrect ones. When the student leaves a question unanswered, or provides a wrong answer for it, the correct answer for that question is marked with a small dot.
• The detected student id, at the bottom of the image, and his name (when the name is provided in the student list files).
• The total number of correct, incorrect and blank answers, at the bottom. The total score of the exam is also shown if the session is configured with the scores for the answers.
• The model of the exam. The model is detected from the small black squares that are printed below the answer table.
• The sequence number of this exam. It is incremented with each graded exam.

In this mode, you can perform the following actions (see the Grading menu):

• Modify the answers of the student, if there are mistakes in the automatically-detected answers, as explained in Modifying student answers.
• Modify the student id, if the system did not recognize it or recognized a wrong id, as explained in Modifying the student id.
• Continue to the next exam (shortcut 'Space-bar'): enters the grading mode in order to detect the next exam. Tip: before saving, it is better to remove the exam from the sight of the camera to avoid it from being captured again. You can even put the next exam under the camera before saving to speed up the process.
• Discard capture (shortcut 'Delete'): discards the current capture without saving it. It is useful, for example, when the capture is not good enough, or when you discover that the same exam has already been graded before.
• Manual detection of answer tables (shortcut 'm'): the system enters the manual detection mode, in which you can help the system detect the answer table by marking the corners of the answer tables. After that, the system will detect the answers of the student and automatically enter again the review mode. This command is allowed only when the system failed to recognize the geometry of the answer tables. See The manual detection mode.

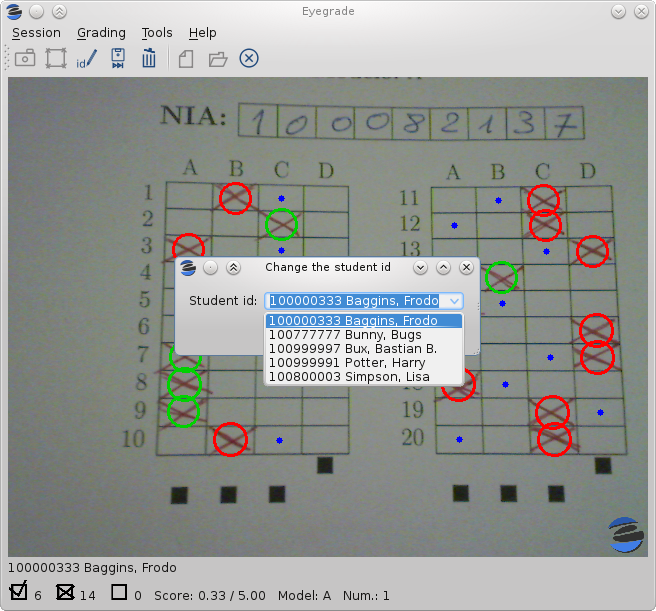

2.5.2   Modifying the student id

Normally, you should provide Eyegrade with the list of class, because detection of student ids performs much better in that case. When scanning the id in an exam, Eyegrade sorts ids of the students in class according to the estimated probability of being the id in the exam. The one with the most probability is shown.

In the review mode, you can enter the correct student id when Eyegrade does not detect it, or detects a wrong one. When you select the Edit student id command in the Grading menu, a dialog for selecting the student id is shown:

The dialog shows the students from the student list sorted by their probability (according to the OCR module) of being the student whose id is in the exam. You just choose one in the drop-down menu. In addition, you can filter students by writing part of their id number or their name.

If the student is not in your list, you can also enter in the dialog her id number and name. If you do that, follow the same format: student id, white space, student name.

2.6   The manual detection mode

In some rare occasions, Eyegrade may not be able to detect the answer tables. In those cases, you can enter the manual detection mode from the grading mode (and also from the review mode if you entered that mode using the Capture the current image command). When entering the manual detection mode, the latest capture of the camera will be shown.

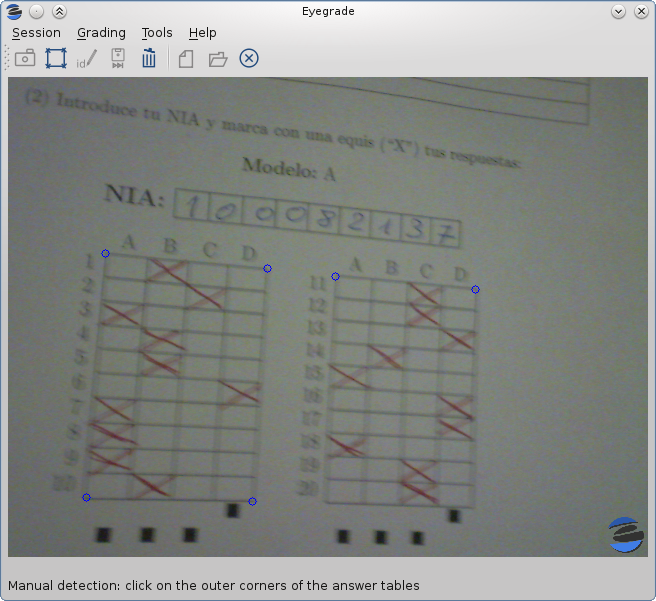

In this mode, just click with the cursor in the four corners of each answer table (a small circle will appear in every location you click). The order in which you click on the corners does not matter. After having done that, Eyegrade will infer the limits of each cell, and based on them it will read the answers of the student and the exam model. It will enter then the review mode.

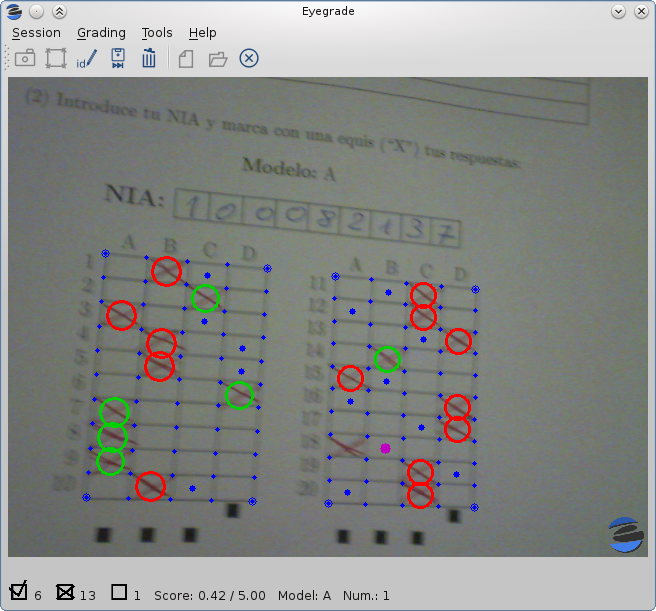

The following two images show an example. In the first image, the user has selected six corners (notice the small blue circles):

After she selects the remaining two corners, the system detects the answers and goes back to the review mode:

Note, however, that the student id will not be detected when you use this mode. When the system goes back to the review mode, set the id as explained in Modifying the student id.

At any point of the process, you can use the Manual detection of answer tables command (shortcut 'm') to reset the selection of corners and start again. If you think that the captured image is not good enough, you can also use the discard command (shortcut 'Backspace') to go again to the grading mode.

Tip: in the manual detection mode, make sure that the captured image shows all the answer tables as well as the exam model squares at the bottom.

3.1   The answers file

The file eyegrade-answers.csv produced by Eyegrade contains the scores in CSV format (with tabulator instead of comma as a separator), so that it can be easily imported from other programs such as spreadsheets. This is an example of such a file:

0   100999991       D       9       6       4.5     1/2/2/4/1/2/2/0/0/3/2/0/3/2/0/4/3/0/1/2
1   100999997       C       15      1       15.0    2/4/4/3/1/0/1/2/1/1/0/1/0/4/3/0/1/4/3/4
2   100800003       D       6       14      6.0     4/2/2/2/1/2/1/3/2/1/3/1/2/1/3/1/4/1/4/3
3   100777777       A       7       13      7.0     3/2/3/2/3/3/2/4/3/1/3/1/4/1/4/2/2/3/4/2

The columns of this file represent:

1.- The exam sequence number (the same number the user interface shows below the student id in the review mode).

2.- The student id (or '-1' if the student id is unknown).

3.- The exam model ('A', 'B', 'C', etc.)

4.- The number of correct answers.

5.- The number of incorrect answers.

6.- The score of the exam, if you configured the weight of correct and incorrect answers for this session.

7.- The response of the student to each question in the exam, from the first question in her model to the last. '0' means a blank answer. '1', '2', etc. mean the first choice, second choice, etc., in the order they were presented in her exam model.

Exams are in the same sequence they were graded. See Exporting a listing of scores to know how to produce a listing of scores in the order that best fits your needs.

3.2   Exporting a listing of scores

You will probably want to export your listing of scores in order to import it into the grade-book, spreadsheet, etc. you use. Since version 0.4 this can be done from the user interface (menu Exams / Export grades listing).

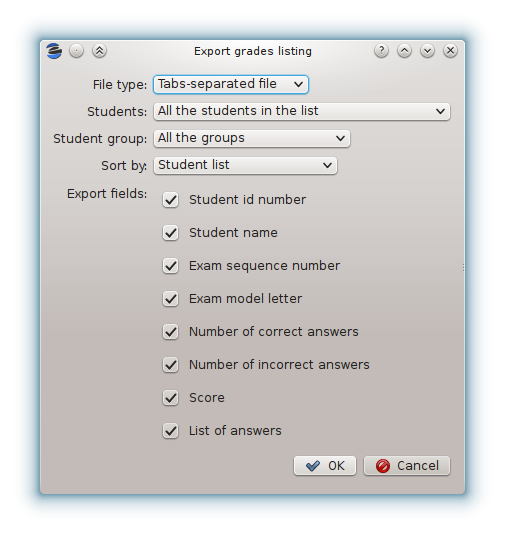

First, the program shows a dialog like the following one:

In this dialog you have to select:

• The format of the output file. The only option right now is a text file with one row per student and fields separated by tabulators. It is a usual data exchange format compatible with spreadsheet software (such as Microsoft Office and OpenOffice) and databases. Other formats might be added in future versions.
• The students to include in the listing: all the students in the student list or just the students whose exam has been graded in this session.
• The student groups to include in the listing: the grades for just a specific group of students or the grades for all the groups. This option is hidden if there is just one student group in the current session. Each student-list file you import in the session is treated as a distinct group. This option is useful when, for example, you teach the course in several separate classes. In that case you can export a separate grades listing for each class.
• How the grades are sorted: according to the order in the student list you imported or according to the order in which you graded the exams.
• Which fields to include in the listing: student id number, student name, grading sequence number, exam model letter, number of correct and incorrect answers, score and full list of answers. Only the fields you check are exported (as columns of the exported file). The order of these fields in the exported file is the same you see in the dialog (first the student id number, then her name, etc.)

Once you complete the selection of options and press the OK button, a new dialog allows you to select the location and name with which the file will be saved. The .csv filename extension is recommended in order to improve compatibility with external programs in which you might want to open the grades. This extension is automatically set if you type a name without extension.

4.1   Editing the questions of the exam

You need to typeset your questions in an XML document. You may use your favorite text editor for that.

At the beginning of the file you should provide some basic data about the exam, such as: the name of the course/subject, the name of the degree, the name of the exam, the date and the duration of the exam. You don't need to provide all those values, just the ones you want printed in the exam.

Then, write the questions one by one. For each question, you have to provide:

• The statement of the question.
• An optional picture to be displayed with the question.
• An optional block of code (for programming exams and the like) to be formatted with a fixed-width font and preserving spacing.
• The text of the correct choice.
• The text of the incorrect choices.

The XML markup must be like shown in the following example:

<?xml version="1.0" encoding="UTF-8"?>

<exam xmlns="http://www.it.uc3m.es/jaf/eyegrade/ns/"
      xmlns:eye="http://www.it.uc3m.es/jaf/eyegrade/ns/">

  <subject>Computers and More</subject>
  <degree>An Awesome Degree</degree>
  <title>Final examination</title>
  <date>January 1st, 2011</date>
  <duration>10 min.</duration>

  <question>
    <text>
      What is Python?
    </text>
    <choices>
      <correct>A programming language</correct>
      <incorrect>A computer manufacturer</incorrect>
      <incorrect>A kind of tree</incorrect>
      <incorrect>Who knows!</incorrect>
    </choices>
  </question>

  <question>
    <text>
      What is a webcam?
    </text>
    <choices>
      <correct>A video camera whose output may be viewed in real
         time over a network, especially over the Internet.</correct>
      <incorrect>A video camera intended to spy on spiders</incorrect>
      <incorrect>A kind of fish</incorrect>
      <incorrect>Who knows!</incorrect>
    </choices>
  </question>

  <question>
    <text>
      What is the thing at the right?
    </text>
    <code eye:position="right" eye:width="0.4">for letter in ['a', 'b', 'c']:
    print letter</code>
    <choices>
      <correct>A computer program</correct>
      <incorrect>A recipe</incorrect>
      <incorrect>A tree</incorrect>
      <incorrect>Who knows!</incorrect>
    </choices>
  </question>

  <question>
    <text>
      Is the thing in the right a logo?
    </text>
    <figure eye:width="0.16" eye:position="right">sample-logo.eps</figure>
    <choices>
      <correct>Well, it tries to be a logo, to be honest.</correct>
      <incorrect>No, it's a tree.</incorrect>
      <incorrect>No, it's a perfect square.</incorrect>
      <incorrect>Who knows!</incorrect>
    </choices>
  </question>

  <question>
    <text>
      Which is the capital of Spain?
    </text>
    <choices>
      <correct>Madrid.</correct>
      <incorrect>Barcelona.</incorrect>
      <incorrect>Paris.</incorrect>
      <incorrect>None of the other answers is correct.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      Which is the capital of France?
    </text>
    <choices>
      <correct>Paris.</correct>
      <incorrect>Lion.</incorrect>
      <incorrect>Madrid.</incorrect>
      <incorrect>None of the other answers is correct.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      What does ``hola'' mean in Spanish?
    </text>
    <choices>
      <correct>``Hello''.</correct>
      <incorrect>``Bye''.</incorrect>
      <incorrect>``Wave''.</incorrect>
      <incorrect>``Hola'' is not a word in Spanish.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      How many months has a year?
    </text>
    <choices>
      <correct>12.</correct>
      <incorrect>6.</incorrect>
      <incorrect>10.</incorrect>
      <incorrect>It depends on whether it is a leap year or not.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      Are dolphins mammals?
    </text>
    <choices>
      <correct>Yes.</correct>
      <incorrect>No.</incorrect>
      <incorrect>Sometimes.</incorrect>
      <incorrect>Who knows\ldots.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      Who created Python?
    </text>
    <choices>
      <correct>Guido van Rossum.</correct>
      <incorrect>Richard Stallman.</incorrect>
      <incorrect>Dennis M. Ritchie.</incorrect>
      <incorrect>Jamie Zawinski.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      How is ``Germany'' said in German?
    </text>
    <choices>
      <correct>Deutschland.</correct>
      <incorrect>Die Schweiz.</incorrect>
      <incorrect>Germany.</incorrect>
      <incorrect>Berlin.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      What is Linux?
    </text>
    <choices>
      <correct>A free-software operating system.</correct>
      <incorrect>A river in Spain.</incorrect>
      <incorrect>The tallest mountain on Earth.</incorrect>
      <incorrect>An Internet company that sells phones.</incorrect>
    </choices>
  </question>

  <question>
    <text>
      Which of the following pieces of code follows the Java syntax?
    </text>
    <choices>
      <correct>
<code>public class MyClass {

}
</code>
      </correct>
      <incorrect>
<code>class MyClass:
    pass
</code>
      </incorrect>
      <incorrect>
<code>PUSHA
MOV eax, 60
</code>
      </incorrect>
      <incorrect>
<code>struct MyClass {

}
</code>
      </incorrect>
    </choices>
  </question>

<question>
    <text>
      Which of the following pictures is different to the rest?
    </text>
    <choices>
      <correct>
        <figure eye:width="0.03">drawing-1.eps</figure>
      </correct>
      <incorrect>
        <figure eye:width="0.03">drawing-2.eps</figure>
      </incorrect>
      <incorrect>
        <figure eye:width="0.03">drawing-2.eps</figure>
      </incorrect>
      <incorrect>
        <figure eye:width="0.03">drawing-2.eps</figure>
      </incorrect>
    </choices>
  </question>

</exam>

You can insert LaTeX markup within the text of the statement and the choices if you need, for example, to insert a math equation or format a piece of text in italics, boldface or typewriter font:

<question>
  <text>
    Text in \emph{italics}, \textbf{boldface}
    and \texttt{typewriter} font style.
  </text>
  <choices>
    <correct>A LaTeX equation: $x^2 - 1$</correct>
    <incorrect>Nothing</incorrect>
  </choices>
</question>

<question>
  <text>
    Is the thing in the right a logo?
  </text>
  <figure eye:width="0.16" eye:position="right">sample-logo.eps</figure>
  <choices>
    <correct>Well, it tries to be a logo, to be honest.</correct>
    <incorrect>No, it's a tree.</incorrect>
    <incorrect>No, it's a perfect square.</incorrect>
    <incorrect>Who knows!</incorrect>
  </choices>
</question>

<correct>
  <figure eye:width="0.2">sample-logo.eps</figure>
</correct>

<code eye:position="right" eye:width="0.4">for letter in ['a', 'b', 'c']:
    print letter</code>

<incorrect>
<code>class MyClass:
    pass
</code>
</incorrect>

4.2   Editing the LaTeX template

In addition to the questions of the exam, you'll need a LaTeX template. It allows you to design the front page of the exam and other aspects (fonts, margins, etc.) This is an example:

\documentclass[a4paper,11pt]{article}

\usepackage{amssymb, amsmath}
\usepackage[utf8]{inputenc}
\usepackage{indentfirst}
\usepackage{multirow}

\usepackage[a4paper, margin=2.5cm, top=2cm, bottom=3cm]{geometry}

\pagestyle{empty}

{{declarations}}

\begin{document}

\begin{center}
\begin{tabular}{p{5.2cm}r}
\multirow{5}{*}[0.35cm]{\scalebox{0.18}{\includegraphics{sample-logo.eps}}} &
\Large  \textbf{{{subject}}} \\
& \textbf{{{degree}}} \\
& \\
{{date}} & {{title}}. \\
Duration: {{duration}}
      & Score: 5 points out of 10 total points for the exam. \\

\end{tabular}
\end{center}

\vspace{0.5cm}

\emph{There is only one correct answer for each multiple choice
  question.  Each correct answer adds 1 point.  Each incorrect answer
  has a penalty of $1/3$ points.  If no answer no score is awarded,
  neither positive nor negative.}

\vspace{0.5cm}

\begin{center}
\begin{tabular}{|p{0.8\textwidth}|}
\hline
\begin{itemize}
\item Mark out your answers with an ``X''.
\item If more than one answer or no answer are selected, the question
  is considered to be not answered (no score is awarded, neither
  positive nor negative).
\item Remember to fill in your name and student ID.
\end{itemize}
\\
\hline
\end{tabular}
\end{center}

\vspace{0.2cm}

\begin{center}
(1) Write your personal data clearly.
\end{center}

\begin{center}
\large

\begin{tabular}{|l|p{12cm}|}
\hline
Last name:   &  \\
\hline
First name: &    \\
\hline
Group:   &  \\
\hline
\end{tabular}
\end{center}

\vspace{0.2cm}

\begin{center}
(2) Write down your student ID and cross out your answers with an ``X'':
\end{center}

\begin{center}
\large
\textbf{Model:} {{model}}
\end{center}

{{id-box(9,ID)}}

{{answer-table}}

\clearpage

{{questions}}

\end{document}

In the template, notice that there are some marks within {{ and }} that are intended to be replaced by the script with data from the exam:

• {{declarations}}: the script will put there some LaTeX declarations it needs.
• {{subject}}, {{degree}}: name of the subject and degree it belongs to. Taken from the XML file with the questions.
• {{title}}: the title of the exam. Taken from the XML file with the questions.
• {{duration}}: duration of the exam. Taken from the XML file with the questions.
• {{model}}: a letter representing the model of the exam. Each model has a different ordering for questions and choices within questions.
• {{id-box(9,ID}}: replaced by a box for students to fill in their IDs. The number of digits and the text to be put at the left of the box are specified within the parenthesis.
• {{answer-table}}: replaced by the table in which students mark out their answers.
• {{questions}}: replaced by the questions of the exam.

Note that a template is highly reusable for different exams and subjects.

4.3   Creating the LaTeX source files

Once the exam file and the template have been created, the script create_exam.py parses them and generates the exam in LaTeX format:

python -m eyegrade.create_exam -e exam-questions.xml -m 0AB template.tex -o exam

The previous command will create models 0, A and B of the exam with names exam-0.tex, exam-A.tex and exam-B.tex. The exam model 0 is a special exam in which questions are not reordered. The correct answer is always the first choice in the model 0. The model 0 is convenient while editing the questions, but you must remember not to use it in the exam itself.

In addition, Eyegrade will automatically create the exam.eye file needed to grade the exams, or update it if it already exists.

The script create_exam.py has other features, like creating just the front page of the exam (no questions needed). They can be explored with the command-line help of the program:

python -m eyegrade.create_exam -h

The answer table can be enlarged or reduced with respect to its default size, using the -S option and passing a scale factor (between 0.1 and 1.0 to reduce it, or greater than 1.0 to enlarge it). The following command enlarges the default size in a 50% (factor 1.5):

python -m eyegrade.create_exam -e exam-questions.xml -m A template.tex -o exam -S 1.5

4.4   Creating the PDF files

Once the .tex files have been created, you have to use LaTeX to produce the PDF files. For each file, run the following command:

pdflatex exam-A.tex

If you have several exam models, running that command for each one may be tedious. On Linux systems you can produce all of them with just a couple of commands:

find -name "exam-*.tex" -exec pdflatex \{\} \;

That's it! Now you can print the PDF files of your exams.

4.5   Installing the LaTeX system

LaTeX is included in the repositories of the major Linux distributions. In Debian and Ubuntu you can simply install the package texlive-latex-recommended:

sudo apt-get install texlive-latex-recommended

For MS Windows there are some LaTeX distributions that provide a graphical installer, such as ProText:

1. Download the ProText installer (be aware that the size of the download is about 1.7 GB).
2. From the installer, choose to install MiKTex. When you are offered a minimal or full installation, the minimal one is enough.
3. You probably won't need to install TeXstudio, which is also offered by the installer.

5.1   Webcam selection

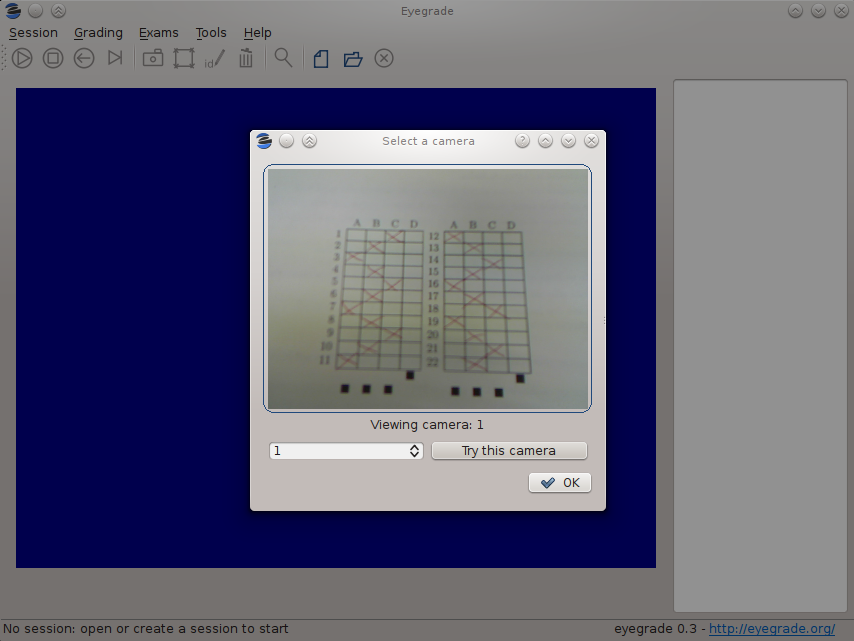

If your computer has more than one camera (e.g. the internal camera of the laptop and an external camera you use to grade the exams), Eyegrade will select one of them by default. If the selected camera is not the camera you want to use to grade the exams, use the -c <camera-number> option when invoking Eyegrade. Cameras are numbered 0, 1, 2, 3, etc. Invoke Eyegrade with a different camera number until the interface displays the one you want. For example, to select the camera numbered as 2:

python -m eyegrade.eyegrade exam.eye -c 2 -l student-list.csv

When the number is -1, eyegrade will automatically test different camera numbers until it finds one that works. When you select a camera number that does not exist or does not work, Eyegrade will also look automatically for other camera that works.

You can configure Eyegrade to always use a specific camera number by inserting the option camera-dev in the default section of the configuration file:

## Sample configuration file. Save it as $HOME/.eyegrade.cfg
[default]

## Default camera device to use (int); -1 for automatic selection.
camera-dev: 1

Save it in your user account with name .eyegrade.cfg. In Windows systems, your account is at C:\Documents and Settings\<your_user_name>.

5.2   Creating the exams in a word processor

The current prototype of Eyegrade require users to know LaTex in order to personalize exam templates. This section explains an alternative way to create exams compatible with Eyegrade in a word processor such as Microsoft Word. If you create your own exams with a word processor, you'll need also to edit the .eye file manually. See Manually editing the .eye file.

The objective is emulating the tables that Eyegrade creates so that the program can read them. This is an example:

You can use as a template this example MS Word document. It shows an answer table for 20 questions, which you can edit in order to customize if for your needs. Nevertheless, you should read the rest of this section if you are planning to customize the answer table.

An answer table is a table in which rows represent the questions and columns represent the choices. There can be more than one answer table, but they have to be side by side (they cannot be placed one above the other). The example above show two answer tables. A few restrictions have to be taken into account:

• If there are more than one table, they must be horizontally aligned. That is, their top and bottom must be in the same line, and their rows must have exactly the same height (see the example above).
• All the rows should have the same height.

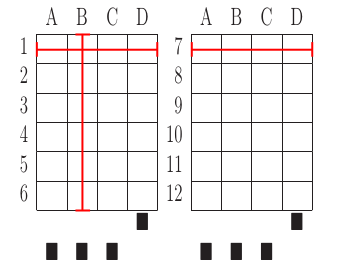

• In order to improve the detection process, the length of the vertical lines and the length of the horizontal lines should be more or less proportionate (e.g. one of them should not be more than a 30% larger than the other). If there are more than one answer table, consider the added length of the horizontal lines of every table. The following image illustrates this. The red vertical line is not much smaller than the sum of the two horizontal lines.

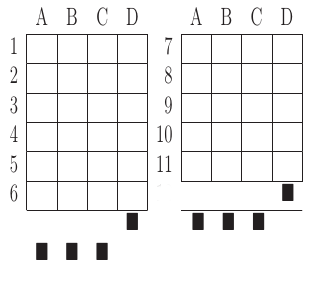

• If an answer table has less rows than the others, it is better to keep the horizontal lines, as shown in the image below:

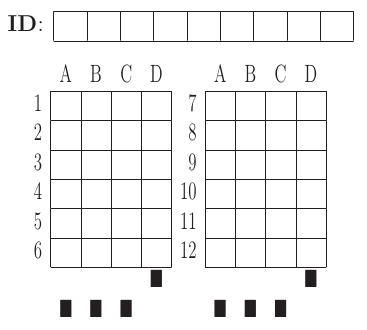

The boxes for the student ID number should be above the answer tables, not too close but not too far away either (see the example below). The width of the student ID table should be comparable to the sum of the width of the answer tables (approximately no less than 2/3 of that sum, and no more than 3/2). Student IDs with just a few digits (two, three, four) can potentially be problematic for wide answer tables.

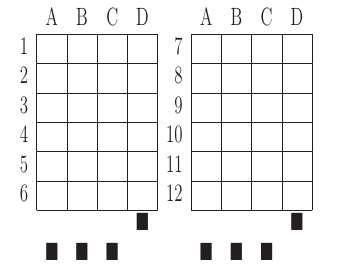

At the bottom of the answer boxes there must be some black squares. They encode the exam model (permutation). In addition, they help the system to know whether the detection of the answer tables was correct.

Imagine that there are two more rows at the end of each answer table, with the same height as the other rows. Squares will be either in the one above or in the one below, and there must be a square per column. Squares should be centered in those imaginary cells. The position (above/below) of a square conveys the information read by Eyegrade as binary information.

The exam model is encoded with three squares. Therefore, there can be eight different models. The fourth square is a redundancy code for the previous three squares. This 4-square pattern is repeated from left to right as long as there are columns. The table to which a column belongs is not taken into account. For example, if there are two answer tables with three columns each, the fourth square (the redundancy square) is placed at the first column of the second table. The other two columns of the second answer table would contain the same squares as the first two columns of the first table.

The following table show the 4-square pattern for each exam model, as they should be placed from left to right:

5.3   Manually editing the .eye file

The files that store the configuration of an exam and the correct answer for each question are stored with a .eye extension. An example is shown below:

[exam]
dimensions: 4,7;4,7
id-num-digits: 9

[solutions]
model-A: 1/1/2/4/4/2/3/4/2/1/3/3/4/4

[permutations]
permutations-A: 1{1,4,3,2}/7{1,2,4,3}/5{2,1,3,4}/8{3,4,2,1}/9{4,2,3,1}/10{3,1,2,4}/14{2,4,1,3}/6{2,4,3,1}/12{3,1,2,4}/2{1,3,4,2}/13{3,4,1,2}/3{2,4,1,3}/4{2,4,3,1}/11{3,4,2,1}

The file is just plain text and can be edited with any text editor. It has several sections: exam, solutions and permutations.

The fields of the exam section are:

• dimensions: here the number of answer tables and the number of columns and rows in each answer table are configured. For example, "4,6;4,6" means that there are two answer tables, both of them with geometry "4,6". The "4" is the number of columns of the table. The "6" is the number of rows. Tables are specified from left to right (i.e. the first table geometry corresponds to the left-most table in the exam).
• id-num-digits: number of cells of the table for the student id number. Putting a 0 here means that the id number needs not to be read.
• correct-weight: a number, such as 1.75, that represents the score assigned to a correct answer.
• incorrect-weight: a number that represents the score to be substracted for failed answers. Blank answers are not affected by this.

The fields correct-weight and incorrect-weight are optional. If they appear in the file, the program will show the total score in the user interface.

The solutions section specifies the correct answers for each model (permutation) of the exam. Models are identified by letters ("A", "B", etc.). For example:

model-A: 4/1/2/1/1/1/2/4/1/2/3/1
model-B: 3/2/1/4/4/2/2/1/4/2/3/3

In the example above, in the model A, the correct answer for the first question is the 4th choice, for the second question is the 1st choice, for the third question is the 2nd choice, etc.

The permutations section has information that allows to know how questions and choices have been shuffled with respect to the original order. They are used only for extracting statistics or fixing grades after the exam if the solutions used for grading are found to have an error in some questions. If you create the .eye manually, you probably want to just remove this section from the file, unless you need some of the above-mentioned functions.

5.4   Automatic detection of exam removal

If the camera in your setup is fixed, that is, you place an exam below the camera, review it, remove it and place the next exam, you may want Eyegrade to detect that you have removed the exam instead of having to click on the Save and capture next exam command.

You can activate this experimental feature in the Tools menu, Experimental submenu, option Continue on exam removal. When this option is checked, Eyegrade saves the current capture and enters the search mode automatically, after a few seconds of not detecting an exam. Before placing the new exam, wait for the system to actually enter the search mode: if you are too quick, Eyegrade might not detect the removal of the exam.

Tip: don't use this option if the camera is not fixed, because just moving it a little bit may cause Eyegrade to think that the exam has been removed.
